Oxidative stress markers are elevated in exhaled breath condensate of workers exposed to nanoparticles during iron oxide pigment production

Iron nanoparticles belong to 13 priority nanomaterial groups identified by the organisation for economic co-operation and development (OECD) for evaluation of their safety [1]. There is very little information about potential risks of occupational exposure to engineered nanoparticles during production and processing; therefore this is a widely debated issue. Studies on the effect of occupational exposure to engineered iron oxide nanoparticles have yet to be published [2] and no biological exposure tests have been developed to monitor workers' exposure [3].

Similar to all nanoparticles, iron oxide nanoparticles are associated with unique physicochemical properties that facilitate their use in novel applications. On the other hand, nano-scale particles with large surface area and enhanced reactivity can more readily diffuse across biological membranes and through tissue barriers. Based on experimental data, humans exposed to engineered nanomaterials could have oxidative damage in their respiratory system and in other organs due to systemic effects [3, 4].

Iron oxide nanoparticles, including Fe₂O₃ and Fe₃O₄, are found naturally in the environment during volcanic eruptions. In addition, they can be found in vehicle and industry emissions and air pollution particulates. They are also chemically synthesized for a wide variety of applications. For example, they are present in paint, ink, rubbers, plastics, cosmetics, and in medical devices [2].

Occupational exposure to iron oxides occurs during pigment production. These pigments have pure consistent properties and tinting strength. Ilmenite (FeTiO₃) is a steel-grey titanium-iron oxide mineral that is the source of iron oxides used in the pigment production industry. Red iron oxide pigments are produced by thermal decomposition in the process of roasting and calcination. α-Fe₂O₃ is obtained by oxidative calcination of decomposable iron compounds. The colour changes from red with a decreasing yellowish hue between 700–750 °C to red with an increasing bluish hue between 750–900 °C [5].

Single component forms are mainly produced as red (hematite, α-Fe₂O₃, 70% iron), yellow (limonite/goethite, FeO(OH), 63% iron) and black (magnetite, Fe₃O₄, 72% iron) pigment. A combination of Fe₂O₃ and Fe₃O₄ yields brown pigment [6]. These production processes generate high concentrations of small particles [7].

Nevertheless, the potential adverse health effects of iron oxide nanoparticles are poorly understood and limited information on the toxicological effects of these nanoparticles exists. However, it is now known that their toxicity may differ from that of their bulk counterparts. Experimental studies suggest that iron oxide nanoparticles can be distributed in secondary organs and induce damage in biological systems [8]. After inhalation, due to their small size, nanoparticles can deposit in the lower, gas exchange region of the lungs [9]. In addition, inhalation of iron oxide particles is more likely to have systemic effects, compared with ingestion and dermal exposure [2].

Nano-sized particles can directly interact with the plasma membrane and/or mitochondria NADPH oxidases, leading to disruption of the electron transport chain and generation of superoxide radicals [10]. According to Singh [11], iron oxide nanoparticles in cells can be degraded into Fe²⁺ in lysosomes. This 'free iron' has the potential to cross nuclear and mitochondrial membranes. In mitochondria, Fe²⁺ can react with hydrogen peroxide and oxygen to form highly reactive hydroxyl radicals and Fe³⁺ via the Fenton reaction. The generation of hydroxyl radicals and other reactive oxygen species (ROS) can result in lipid, protein and DNA damage, leading to impaired mitochondrial function, cellular stress, inflammation, cytotoxicity, apoptosis and genotoxicity [11, 12].

In rats, bronchoalveolar lavage and histopathology revealed decreased cell viability and lung injury following a single 4 h inhalation exposure to 640 mg m⁻³ iron oxide nanoparticles (Fe₃O₄, size 15–20 nm). Within 24 h post-exposure, lung tissue malondialdehyde (MDA) concentration increased [13]. Inhalation of ~20 mg m⁻³ Fe₃O₄ aerosol for 4 h led to interstitial inflammation and macrophage infiltration in the alveolar region [9]. However, after a mild acute exposure to Fe₂O₃, Sotiriou et al [14] found significantly elevated levels of ROS in the lungs and hearts of rats exposed for 5 h to 100–200 μg m⁻³ Fe₂O₃. Systemic effects, specifically hepatic and renal injury caused by oxidative stress, were observed after intraperitoneal injection of Fe₃O₄ nanoparticles in mice. This mechanism was supported by an increase in tissue MDA and 8-hydroxy-2'deoxyguanosine (8-OHdG) at doses of 20 mg kg⁻¹ of body weight [15]. After intravenous injection of γ-Fe₂O₃ (0.8 mg kg⁻¹) in rats, inflammation in the lungs, liver and kidneys suggested small particles crossed endothelial barriers related to vascularisation and vessel permeability in these organs [4]. Similarly, in experimental studies on human cells, oxidative stress markers were elevated in lung bronchial cells, fibroblasts [10, 16], endothelial cells [4], and bone marrow mesenchymal stromal cells [17] following exposure to iron oxide nanoparticles.

In humans, markers of oxidative stress, MDA, 4-hydroxy-trans-hexenale (HHE), HNE, 8-isoProstaglandine F_2α (8-isoprostane) and aldehydes C_6–C₁₂ are used to detect lipid oxidation [18]. Nitrotyrosine (3-NOTyr) is a marker for nitration stress, 3-chloro-tyrosine (3-ClTyr) is a specific molecular marker for the production of chlorinating oxidants by eosinophil peroxidase and myeloperoxidase systems in leukocytes, and o-tyrosine (o-Tyr) is an amino acid oxidation biomarker. In nuclear DNA, 8-OHdG, i.e. 8-oxo-7,8-dihydro-2'-deoxyguanosine (8-oxodG), is the predominant form of free radical-induced oxidative lesions, similar to 8-hydroxyguanosine (8-OHG) and hydroxymethyl uracil (5-OHMeU) in RNA. Therefore, several markers of oxidative stress have been widely used as biomarkers for oxidative stress and carcinogenesis, in particular lung carcinogenesis [19–21].

Besides occupational exposure, epidemiological studies have shown that environmental exposure to air pollution is associated with detrimental effects including disorders related to oxidative stress [22–24]. For example, MDA was suggested as a biomarker of oxidative stress in the respiratory tract in relation to air pollution exposure, and MDA and 8-OHdG were suggested as urine biomarkers for systemic oxidative stress [19, 25, 26].

Exhaled breath condensate (EBC) is a liquid that reflects the composition of the fluid lining the airway [27]. It is obtained non-invasively from subjects after cooling of exhaled air. EBC is composed mainly of water (99.9%) and a small proportion of water-soluble and insoluble compounds. These non-volatile compounds can include small inorganic ions, large organic molecules (urea, organic acids, amino acids), proteins and macromolecules that presumably originate from the airway lining fluid in the form of aerosolized particles [28]. The analysis of EBC allows the source of biomarkers, originally formed in airways and lungs, to be tracked.

The aim of this study was to evaluate markers of oxidative stress in the EBC of workers exposed to iron oxide nanoparticles during iron oxide pigment production and their association with workplace environments.

2.1. Subjects

2.2. Analysis of oxidative stress markers in EBC and urine

2.3. Workplace aerosol measurements

2.4. Raman spectra of dust sediment from the production process

2.5. Environmental air contamination

2.6. Statistics

3.1. Subjects

3.2. Analysis of oxidative stress markers in EBC and urine

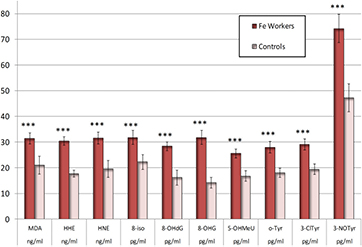

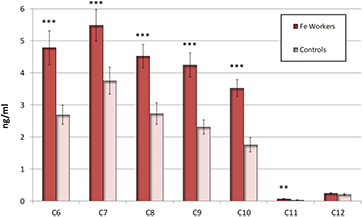

As shown in figures 1 and 2, almost all markers of oxidation of lipids, nucleic acids, and proteins in the EBC (MDA, HNE, HHE, C₆–C₁₀, 8-isoprostane, 8-OHdG, 8-OHG, 5-OHMeU, 3-ClTyr, 3-NOTyr, o-Tyr) were elevated (all p  <  0.001), including C₁₁ (p  <  0.05) in workers compared with control subjects. Only aldehyde C₁₂ was not increased. There was no difference in EBC conductivity and pH (5.40  ±  0.17; 5.30  ±  0.08) between workers and controls, respectively. There was no difference between the pH of the smokers and controls, either.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

In workers, no positive correlation was found between EBC markers and age, lifestyle factors (smoking, alcohol intake) and presence of disease including rhinitis and chronic bronchitis. No correlation was found between the presence of markers (both EBC and urine) and sample collection time.

On the other hand, markers of oxidative stress in urine were not significantly different in workers and controls. Slightly elevated levels of C₆, C₇ and C₉ in workers did not reach statistical significance. However, correlations were observed between several EBC and urine markers of oxidative stress. Among them, MDA, C₆ and C₉ urine concentration correlated with EBC levels of the same markers. Additionally, C₆ in EBC correlated with HNE, C₇–C₁₀, and OHdG in urine, and C₉ in EBC correlated with all other urine markers (p  <  0.05).

3.3. Workplace aerosol measurements

Total workshop aerosol concentrations varied greatly in both time and space. Median mass concentration in the production unit of the plant was 0.083 mg m⁻³ (IQR 0.063–0.133 mg m⁻³) and the particle number concentration was 66,800 particles cm⁻³ (IQR 16 900–86 900 particles cm⁻³).

The mass concentration at the calcination furnace (0.069 mg m⁻³ (IQR 0.061–0.083 mg m⁻³)) was lower than that at the drying unit (0.136 mg m⁻³ (IQR 0.079–0.236 mg m⁻³)). However, the calcination furnace had a higher particle number concentration (86 100 particles cm⁻³ (IQR 80 000–103 000 particles cm⁻³)) than the drying unit (15 900 particles cm⁻³ (IQR 13 000–22 700 particles cm⁻³)).

Surprisingly, the operating room had the highest mass concentration (0.243 mg m⁻³ (IQR 0.175–0.311 mg m⁻³)) but an average particle number concentration (34 100 particles cm⁻³ (25 900–42 800 particles cm⁻³)).

Median particle size distributions (during one work-shift) at each of the three locations (control room, calcination furnace and dryer) were measured by SMPS (figure 3) and APS (figure 4) spectrometers.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The highest particle number concentrations measured by SMPS (14–710 nm) were found near the calcination furnace, where the highest value ~3  ×  10⁵ particles cm⁻³ was found at smallest detectable particle sizes. This suggests there were many particles smaller than 14 nm at this location. This corresponds to a gas-to-particle conversion process whereby gaseous precursors react to form less volatile reaction products that condense to form new particles. At the calcination furnace, particle number concentration decreased as particle size increased. The concentration of 55 nm particles at the calcination furnace was lower than in the control room and correspondingly, the concentration of particles  >70 nm was lowest at the calcination furnace. Surprisingly, in the accumulation peak at ~100 nm, the highest particle number concentration (~5  ×  10⁴ particles cm⁻³) was found in the control room. This indicates that there was a separate source of accumulation peak particles and these particles were not transferred to other parts of the production plant. We can only speculate about the nature of these particles. The lowest concentrations were found at the dryer with a maximum concentration of approximately 2  ×  10⁴ particles cm⁻³. The PSD was broad and flat with two detectable peaks at 30 and 70 nm that likely reflected particles that were transported from other parts of the production plant; however these peaks were not much higher that of background (ambient air).

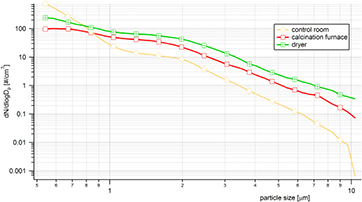

Median particle number size distributions determined by the APS spectrometer (0.5–10 μm) are shown in figure 4. All three PSD were decreased as particle size increased. The highest particle number concentrations were found at the dryer and were ~2  ×  higher than corresponding concentrations at the calcination furnace. The PSD with the steepest curve was from the control room and the smallest APS size was ~2  ×  higher than at the dryer. These particles likely came from the same source as those from the upper size of the spectra measured by SMPS (figure 3). At the right end of the particle size axis in figure 4, control room PSD was more than an order of magnitude lower than at the dryer and in the calcination furnace area. The explanation for the much steeper decline of the PSD is simple: the surface to volume ratio of the control room was by far the highest of all three locations; therefore, the deposition of particles on surfaces was greatest.

It is worth noting that at any part of the plant, the medium dust concentration did not exceed the national allowed concentration of 10 mg m⁻³ for inert dust.

3.4. Raman spectra of dust sediment

Raman spectra of dust sediment samples are shown in figure 5. Raman spectra of samples 1, 2, 4 and 5 show the presence of α-Fe₂O₃ with significant bands at 227 cm⁻¹, 298 cm⁻¹ and 414 cm⁻¹ and the presence of Fe₃O₄ with a significant band at 1322 cm⁻¹ [34]. Samples 1 and 2 were found during red pigment production with a minor presence of Fe₃O₄. The Raman spectrum of sample 3 collected during the production of yellow pigment, shows bands at 240 cm⁻¹, 296 cm⁻¹, 395 cm⁻¹, 476 cm⁻¹, 543 cm⁻¹ and 678 cm⁻¹, consistent with the presence of FeO(OH) [34]. Raman spectra of samples 4 and 5 show a mixture of α-Fe₂O₃ and Fe₃O₄, consistent with brown pigment components.

Zoom In Zoom Out Reset image size

3.5. Environmental air contamination

3.6. Association of EBC markers with occupational exposure

To the best of our knowledge, this study examining oxidative stress markers in iron oxide workers exposed to nanoparticles is the first of its kind in the occupational medicine field. Although workers did not complain of any symptoms, the presence of oxidative stress markers in the EBC of workers compared with controls shows a biological effect of nanoparticle exposure.

In a recent review, Lewinski et al [2] analysed results from both occupational exposure studies and controlled human volunteer inhalation studies. However, no occupational study focused on nanoparticle exposure. Additionally, these studies had poorly defined criteria for iron oxide aerosol exposure. In the volunteer studies, Fe₂O₃ or Fe₃O₄ iron oxide particles with diameters ranging from 1–6 μm were used. Volunteer inhalational studies confirmed two phases of clearance: a fast phase (several days) representing mucociliary clearance in the tracheobronchial tree, and a slow phase (several years) representing macrophage clearance in the alveolar region. This is in agreement with the slow disappearance (reduction in size and profusion) of x-ray opacities in welders due to the recovery of retained iron oxide particles. Welding fumes are classified as possibly carcinogenic for humans (group 2B) by the International for Research on Cancer (IARC) [35]. It is important to mention that welding leads to the formation of nanoparticles and iron represents about 80–95% wt% of welding fumes. However, co-exposure with known carcinogens, such as asbestos, chromium ad nickel may be the most plausible explanation for the elevated cancer risk in welders.

Our study suggests adverse biological effects from inhalational occupational exposure to aerosol containing a high proportion of nano-sized iron oxide particles. This study supports our data from a pilot study where workers were exposed to nano-aerosol during titanium oxide (TiO₂) white pigment production. The results showed that markers of lipids, protein and nucleic acid oxidation were highly elevated (p ˂ 0.001) in the EBC of workers both pre-shift and post-shift [36, 37]. It was also found that the elimination of TiO₂ particles from airways was rather slow, as they were still present in 40% of pre-shift EBC samples from workers, i.e. from the previous shift or shifts [38]. Also many experimental studies using TiO₂ particles document the biological effect of their nano form [39].

Iron oxides and TiO₂ both have low solubility and in the bulk form, they have a low systemic toxicity in humans. In nano iron oxide workers, oxidative stress markers in EBC were elevated; however, the total mass concentrations did not exceed the permissible exposure limit (PEL) for iron oxide particles, the occupational safety and health association (OSHA) limit for iron oxides fumes (10 mg m⁻³ time weighted average TWA concentration) [40] or the National Institute for Occupational Safety and Health (NIOSH) recommended exposure limit of 5 mg m⁻³ TWA [41]. The limits, however, have not been designed for iron nanoparticles.

Additionally, it should be mentioned, that oxidative stress and inflammation markers in EBC were elevated in patients previously exposed to carcinogenic inorganic dusts [29], silica [42] and asbestos [43] which can contain up to 30% iron [44].

Urinalysis of oxidative stress markers was also performed in this study to evaluate potential systemic effects of iron oxide nanoparticles. The negative urinalysis results suggest there were likely no systemic effects.

Studies on the effects of environmental pollutants have been described by Gong [25, 26]. After the Beijing Olympics, it was found that gaseous pollutants, such as SO₂, were associated with elevated MDA and 8-OHdG levels in EBC and urine samples of inhabitants on the same day.

In our study, we did not found environmental air pollution to be an important factor because PM_2.5 concentration, for instance, was about 10  ×  lower compared with the results from the study by Gong et al [26]. Still, two markers, 8-isoprostane and HNE showed an effect of O₃ and SO₂ in the multiple regression analysis; however it was not stronger than the effect of occupational exposure. Therefore, these markers do not appear to be the best predictors of the effect of nano Fe oxides.

One limitation of this study was the low number of subjects, due to a small number of workers in the factory. Even with this limitation, results in this study were still statistically significant at a 95% confidence interval. Another limitation was the fact that the chemical analysis of aerosol samples was not performed. Therefore, dust sediment samples were analysed by Raman microspectrometry to confirm the purity of the iron oxides dust.

To the best of our knowledge, this is the first study to examine oxidative stress markers in EBC and urine in workers exposed to nano iron oxides. The potential adverse effects of nanoparticles on human health are not well understood and research on this subject is a priority for the OECD, NIOSH and European Agency for Safety and Health at Work [45]. The importance of this type of research is high not only for the construction and coatings industries where iron oxide nanoparticles are produced in the process of pigment production, but also for industries that produce fertilizers, catalysts, magnetic materials, biomedical imaging materials and therapeutic agents.

Exposure to iron oxide nanoparticles has been extensively studied in rodents and results show that oxidative stress and inflammatory responses occur after exposure; however, no human studies have been conducted. The elevation of oxidative stress markers in EBC is in agreement with experimental data and with mechanisms of oxidative stress, based on epidemiological studies on major sources of carcinogenesis [46].

Based on our urinalysis results, iron oxide particle exposure did not result in systemic effects. However, this may be dependent on the level of iron oxide particle exposure.

The presence of lipid, nucleic acid and protein oxidation biomarkers in the EBC of workers expanded our understanding of the effect of nanoparticle inhalation in humans. To evaluate the elimination of iron oxide nanoparticles from the human body, we are currently using Raman microspectroscopy and transition electron microscopy to further analyse EBC and urine samples.

Using the precautionary principle, all exposed employees, including research workers who are directly exposed to iron oxide nanoparticles should be monitored for potential side effects. EBC collection and analysis is a non-invasive method for monitoring effects of respiratory system nanoparticle exposure and should be evaluated in parallel with periodic physical examinations.

The authors would like to thank to the Charles University in Prague project P 25/1LF/2, P28/1LF/6 and EU Project 'Material—Technical Research Base for the Diagnostics and Treatment of Environmentally-caused and Oncological Disorders and their Risks, in the General University Hospital in Prague' (reg. No. CZ.2.16/3.1.00/24.12).

The authors claim no conflict of interests
